Peplink

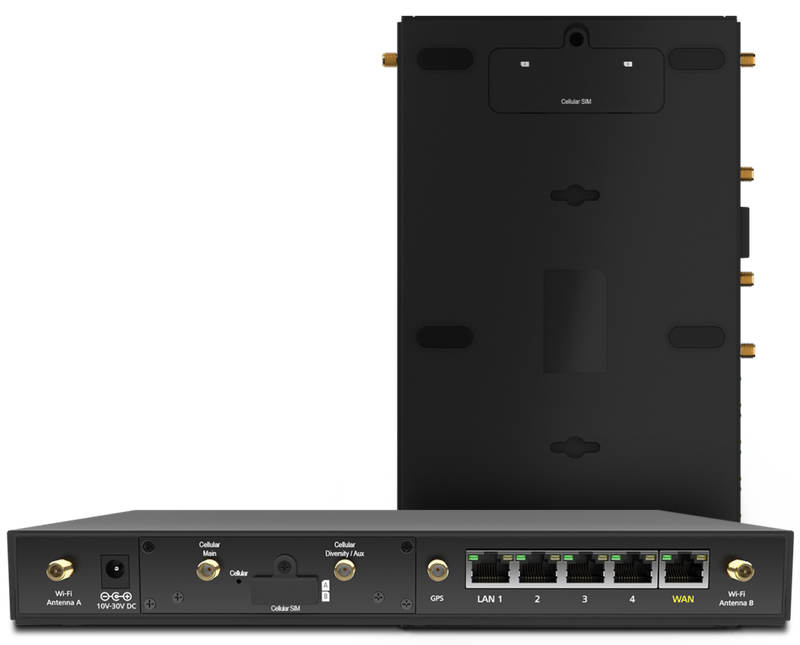

Balance 20X
Balance 20X delivers excellent routing throughput, 11 AC Wave 2 WiFi, includes an embedded cellular modem, and it also supports new Flex Mini module so that you can optionally add a second LTE radio.
Wave2 WiFi
60 Users
900 Mbps Throughput
FlexModule Mini
Add Cellular Backup
Back up your xDSL with a cellular link (up to two with the FlexModule Mini and redundant SIM cards. When a line goes down, your office won’t even notice.
Product Overview
WAN Interface
1 x GE, 1x Embedded LTE Modem 1x USB Interface 1x Expansion Modules (Option)
SpeedFusion Hot Failover
Yes ^
SpeedFusion WAN Smoothing
Yes ^
SpeedFusion Bandwidth Bonding
Yes ^
Number of PepVPN SpeedFusion Peers
5 ^
LAN Interface
4x GE
Wi-Fi Interface
Simultaneous 802.11ac wave 2/ac/a/n and 802.11b/g/n
Stateful Firewall Throughput
900Mbps
PepVPN / SpeedFusion Throughput (No Encryption | 256 bit AES)
100Mbps | 60 Mbps
Recommended Users
1-60
IP Passthrough
Yes
Antenna Connectors
2x SMA Antenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x GPS SMA Antenna Connectors
Power Input
DC Jack: 10V - 30V
Power Consumption
28W (max.)
Dimensions
6.3 x 10.3 x 1.3 inches | 160 x 262 x 33 mm
Weight
1.74 pounds / 0.67 kg
Operating Temperature
14° – 113°F | -10° – 45°C
Certifications
FCC, CE, RoHS
Warranty
1-Year Limited Warranty
Expansion Modules. Overview
Interface
1x Embedded LTE-A Cellular Modems with Redundant SIM Slots
Antenna Connectors
2x SMA Cellular Antenna Connectors
Downlink/Uplink Datarate
300Mbps/50Mbps (CAT-6) 600Mbps/150Mbps (CAT-12)
Power Consumption
20W
Weight
0.83 pounds | 375 grams
Interface
1x Embedded LTE-A Cellular Modems with Redundant SIM Slots
Antenna Connectors
4x SMA Cellular Antenna Connectors
Downlink/Uplink Datarate
1.2 Gbps/150 Mbps (CAT-18)
Power Consumption
20W
Weight
0.83 pounds | 375 grams
Deep Dive
WAN
Support for PPPoE, Static IP, DHCP WAN Link Health Check PING IPv6 Support DNS Lookup HTTP Bandwidth Allowance Monitor USB 4G/3G Modem Support Intelligent Failover Support for Dynamic DNS services changeip.com dyndns.org no-ip.org tzo.com DNS-O-Matic
LAN
DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support Per-Port VLAN Support
Load Balancing
Intelligent Failover Session Persistence Per-Service Load Distribution Multiple Algorithms Weighted Enforced Persistence Priority Overflow Least Used Lowest Latency Fastest Response Time
Complete VPN Solution
PepVPN Site-to-Site VPN Bandwidth Bonding Hot Failover 256-bit AES Encryption Pre-shared Key Authentication Dynamic Routing PPTP/L2TP/OpenVPN Server Local User, LDAP, RADIUS, Active Directory Authentication IPsec VPN (Network-to-Network) X.509 Certificate Support GRE Tunnel (Network-to-Network)
Advanced QoS
User Groups Bandwidth Reservation Individual Bandwidth Limit Application Prioritization By User Groups SIP, HTTPS, VPN QoS Custom Application QoS
Networking
NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP WINS Server VRRP HA Support BGP, OSPFv2 and RIPv2 Support
AP Controller
Auto AP Discovery Auto AP Firmware Management AP Profile Configuration Wi-Fi Usage Statistics
Security
DoS Prevention Stateful Firewall Web Blocking Web Filtering Blacklist
Captive Portal
Support for Wired and Wireless LAN Clients Support RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page
Device Management
Web Administrative Interface Command Line Interface InControl Cloud Management Email Notification Active Client & Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3
Power Requirements
DC Jack: 10V – 30V
Package Content
Balance 20X LTE Antenna x 2 (ACW-813) GPS Antenna x 1 (ACW-232) Wi-Fi Antenna x 2 (ACW-341) 12V 3A PSU x 1 (ACW-602)
Bands – Expansion Modules
Product Code
Product Code Carrier
BPL-021X-LTE-E-T-PRM
Europe / International CAT-4
BPL-021X-LTE-US-T-PRM
Americas CAT-4
EXM-MINI-1LTEA-W
Worldwide CAT-6
EXM-MINI-1LTEA-P
Asia Pacific CAT-6
EXM-MINI-1LTEA-R
America FirstNet CAT-12
EXM-MINI-1LTEA-K
Global* CAT-12
EXM-MINI-1GLTE-G
Global CAT-18
BPL-021X-LTE-E-T-PRM: Balance 20X
Description
Product Code
BPL-021X-LTE-E-T-PRM--Balance 20X, 1x GE WAN ports, 4x GE LAN ports and 1x LTE modem (CAT-4)
BPL-021X-LTE-US-T-PRM--Balance 20X, 1x GE WAN ports, 4x GE LAN ports and 1x LTE modem (CAT-4)
EXM-MINI-1LTEA-W--Expansion Module with 1x LTE-A modems (CAT-6)
EXM-MINI-1LTEA-P--Expansion Module with 1x LTE-A modems (CAT-6)
EXM-MINI-1LTEA-R--Expansion Module with 1x LTE-A Pro modems (CAT-12)
EXM-MINI-1LTEA-K--Expansion Module with 1x LTE-A Pro modems (CAT-12)
EXM-MINI-1GLTE-G--Expansion Module with 1x LTE-A Pro modems (CAT-18)
